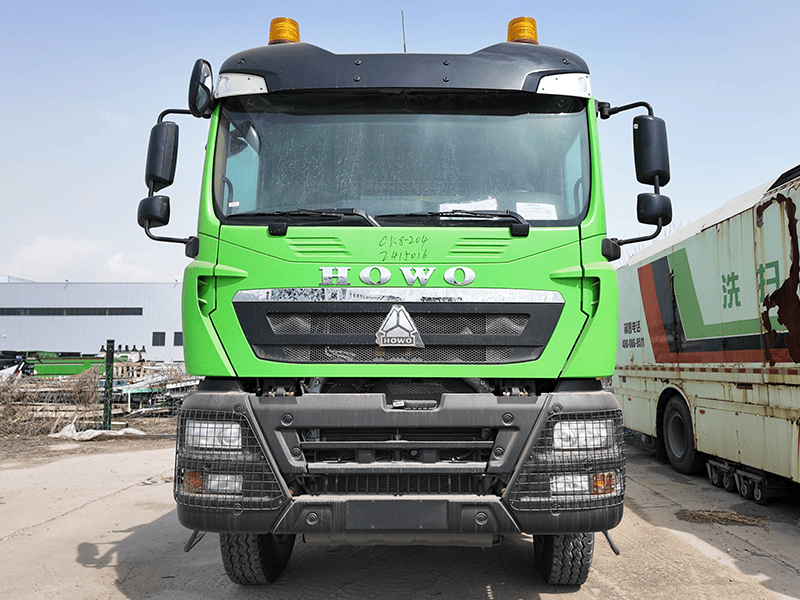

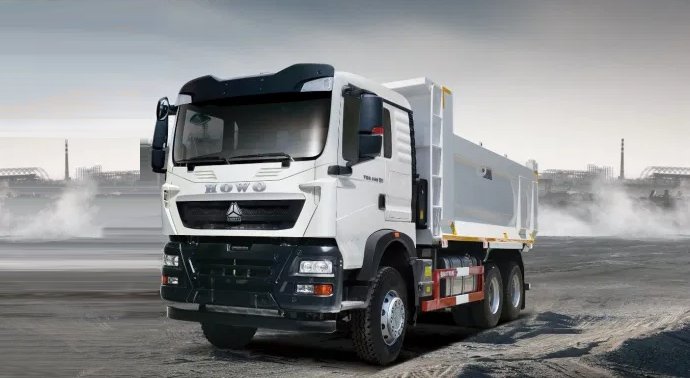

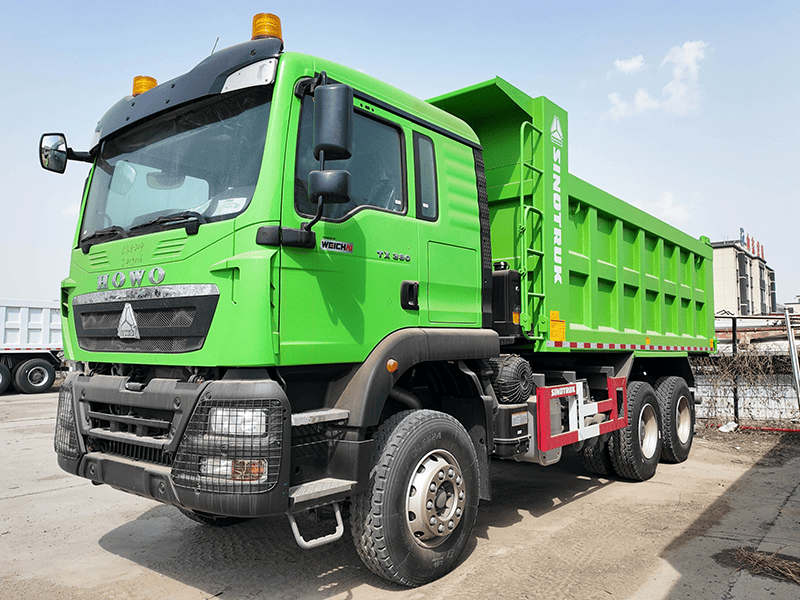

Howo Dump Truck-380-TX-6×4
HOWO Dump Truck-TX-6x4 is a heavy-duty construction truck under Sinotruk, belonging to one kind of 6x4 (i.e. front four and rear eight) dump trucks in the HOWO series, which is widely used in heavy-duty transportation scenarios such as mine transportation, construction sites, infrastructure construction and so on.
Models
- Drive type: 6×4
- Dimension (mm): 8400×2496×3400
- Max load (kg): 25000
- Emission: EURO2-5
- Power: 336-420hp
| Core Configuration | Length, width and height(mm) | 9745~10825*2496~2550*3450~3550 |
|---|---|---|
| Drive Axle | MCX16ZG Dual Rear Axle(Drum) | |
| Frame | Double-layer frame(8+8/300) | |
| Suspension | Front and rear reinforced multi-leaf springs(11/12) | |
| Transmission | HW19710 gearbox + HW50 direct coupled pickup | |
| Engine | WP10.380E22 engine | |
| Cab | TX-F cab | |
| Compulsory | Tires | 315/80R22.5 tires(mixed tread/18PR) |
| Ratios | 5.451 | |
| Bumper | High bumper (all metal) | |
| ABS | Without ABS | |
| Front Axle | VGD95 front axle (drum) | |
| Steering | Right hand steering wheel | |
| Selectable | Air conditioning unit | Heating and cooling air conditioning |
| Cabin Overhead Lamps | Single police light on cab roof | |
| Cabin | Classic version | |
| Battery | 165AH battery | |
| Fuel tank | 300L fuel tank | |
| Intake system | Engineering air intake system | |
| Exhaust system (oil filter) | Standard exhaust system | |
| Wheel option | Reinforced wheels | |
| Upper Garment | Compartment size: 5600x2300x1500mm, bottom 8mm, side 6mm, general board, strengthened T type, with main fuel tank anti-theft, battery protection, the whole car wax spraying. | |
